Industry Standard DB25 Cables

5' cable costs $169.65. Click on drop down menus below to choose cable lengths and other options.

These cables are built in various lengths, with an Industry Standard male DB25 connector with thumb screws (wired in the Tascam pinout configuration) on one end going to XLR's on the other. The XLR end has a 15 inch breakout.

CABLE OPTIONS & UPGRADES:

For inputs to your DB25 connected device, select female XLR's. For outputs select male XLR's.

5' cable costs $96.24. Click on drop down menus below to choose cable types, lengths and other options.

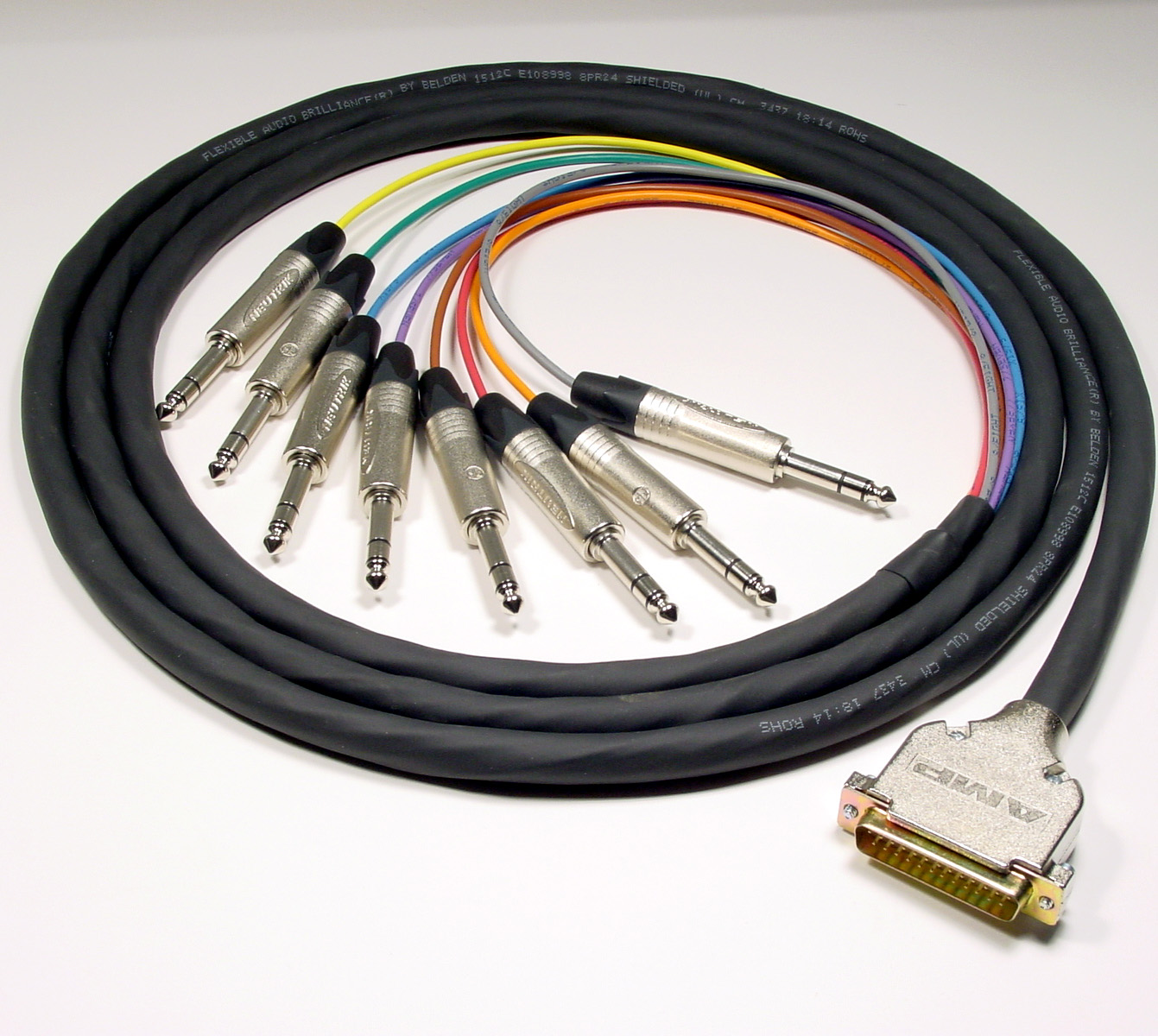

These cables are built in various lengths, with an Industry Standard male DB25 connector on one end going to Neutrik 1/4" phone plugs on the other. The 1/4" end has a 15 inch breakout. Choose from three cable types.

CABLE OPTIONS & UPGRADES:

These cables may be used for both inputs and outputs.

This is a top of the line 19 inch rack panel and cable assembly, perfect for analog and digital audio connection to an HD I/O 8 x 8 x 8 interface unit. And others. This device is wired with Tascam/Pro Tools Industry Standard DB25 connections. By request we can build these with any DB25 configuration for you. Click on drop down menus below to choose cable lengths and other options.

• This is the fastest, most convenient and reliable way to connect various audio in and out of your interface.
• All connectors and materials are high quality, industry standard for Pro Audio.
• Easy hookup. The DB25's are equipped with thumbscrews for simple connection. No tiny screwdriver necessary.
• Includes the four most commonly used audio formats, all connect with DB25 to the back of the interface:
  1. Analog +4 dBu inputs on female XLR of the 8 combo connectors.
  2. Analog -10 dBV inputs on female 1/4 " TRS of the 8 combo connectors.
  3. Analog +4 dBu ouputs on 8 male XLR connectors.
  4. Digital AES/EBU inputs on 4 female XLR and outputs on 4 male XLR.

In your studio this panel can be mounted on the front of your rack for easy audio connection to and from your equipment. No more hassles trying to get to the back of the rack to plug stuff in. Remember:

Less Time to Connect = More Time to Create

If you're on the road a lot you don't want to keeping banging connectors in and out of your interface. Eventually something expensive will break. Conveniently plug in and out of our panel to take the shock off your box and increase it's life.

The 3 foot cable length is long enough to service most equipment racks and keep things neat inside.

All four of the DB25 connectors are inside metal hoods. These heavy-duty hoods provide extra protection and RF shielding for your audio signals. They are equipped with nice long thumbscrews for easy connection, no tiny screwdriver needed.

The panel is 2 rack units tall. The rear of the panel has a slotted tray to hold the cabling and protect the panel connections. It is 5 inches deep.

As always we can easily build any of our products to your custom specification and offer you discounts on multiple item purchases.

CABLE OPTIONS & UPGRADES:

5' cable costs $35.78. Click on drop down menus below to choose cable types, lengths and other options.

These cables are built in various lengths, with an Industry Standard male DB25 connector on one end going to Neutrik XLR's on the other. 1 AES/EBU channel of input on the female XLR and 1 channel of output on the male. A lot of people only need 1 channel in and out. No reason to pay extra for the 4 In/Out cables.

CABLE OPTIONS & UPGRADES:

8' cable costs $147.52. Click on drop down menus below to choose lengths and other options.

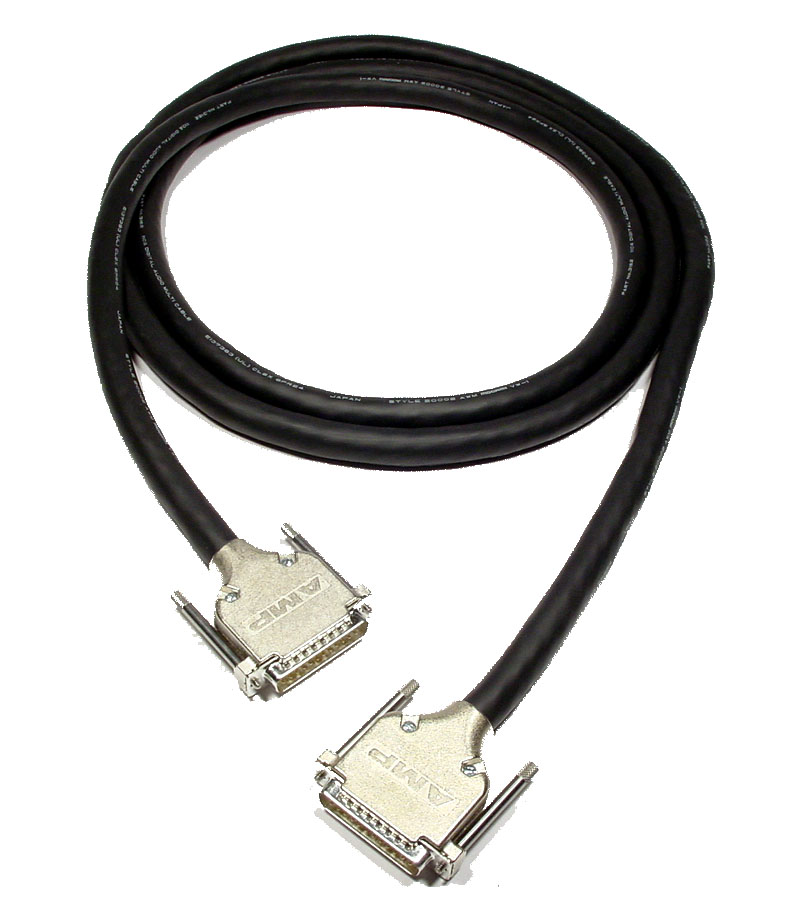

Picture shows metal DB25 hoods with Thumbscrew Option.

This cable comes in three versions:

1. Analog or Digital Link Cable. To connect 8 channels of analog audio between units or from a unit to patchbays. Also to connect 16 channels of AES/EBU digital audio to patchbays and other devices. (Pin to pin wiring.)
2. AES/EBU Dubbing Cable. For making digital audio connections between two units. Outputs on one end go to Inputs on the other and visa-versa.
3. Extension Cable. For extending standard DB25 audio cables. Comes with the usual male DB25 on one end but has a female DB25 on the other. The female connector has sockets instead of screws so that a male connector from another cable will plug and securely screw into it.

These are built with Mogami 3162, 8 channel, 110 ohm digital audio cable.

Both of the DB25 connectors are enclosed with metal AMP hoods. These heavy-duty hoods provide extra protection and RF shielding for your audio signals. And they are equipped with nice long thumbscrews for easy connection, no screwdriver necessary.

CABLE OPTIONS & UPGRADES:

15' cable costs $403.18. Click on drop down menus below to choose lengths and other options.

This is a top of the line cable harness, custom-built for connecting your 192 interface unit. With these harnesses we take extra steps to make them ultra-durable.

It is fabricated using Mogami 2934, 16 pair audio cable to connect 8 analog inputs and 8 analog outputs. Mogami is the cable of choice for just about all of the professional recording studios around the world. From the Mogami website: "Mogami multicore cables are designed for the highest level of audio performance and feature superb electrical and mechanical characteristics while remaining compact, super flexible and easy to use".

The end that plugs into the 192 I/O has the inputs and outputs separated into two groups, each covered with black Tech Flex and terminated with DB25 connectors. The input group is longer than the output group so that the harness dresses nicely behind the unit. The input connector can be used on either the +4 or the -10 inputs.

Both of the DB25 connectors are enclosed with metal AMP hoods. These heavy-duty hoods provide extra protection and RF shielding for your audio signals. And they are equipped with nice long thumbscrews for easy connection, no screwdriver necessary.

The XLR ends have a 24-inch breakout on all pairs, with the inputs and outputs tied into separate bundles. Each pair is covered with 1/8 inch black Tech Flex. The Tech Flex protects the pairs and does a great job of preventing tangles. Each pair is identified with easy to read, machine printed, self-laminating labels. For extra protection each label is encased in clear heat shrink tubing.

The XLR's are industry standard Neutrik Gold contact, black housing XLR's, male for the outputs, Neutrik Part # NC3MXX-B, female for the inputs, Neutrik Part # NC3MXX-B.

CABLE OPTIONS & UPGRADES:
